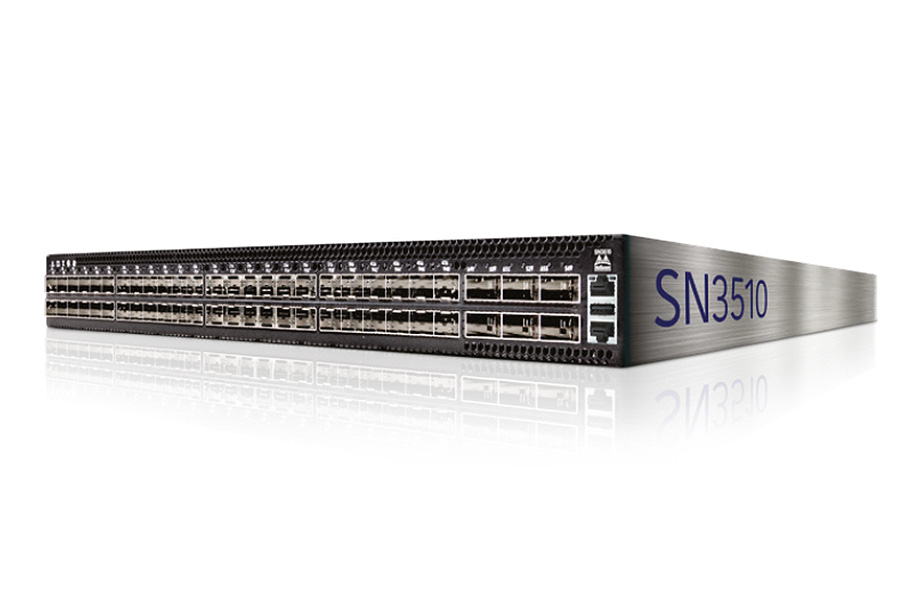

Mellanox SN3510 «NEW»

Equipped with 48 ports of 1/25/50GbE and 6 ports of up to 400GbE, SN3510 is an ideal leaf platform. The 400GbE ports can optionally be split into up to 48 ports running 50GbE and the platform can deliver a total throughput of up to 9.6Tb/s with 7.14Bpps processing capacity in a compact 1U form factor. As data centre switching architectures increasingly adopt 400GbE, SN3510 offers a cost-effective and high performance top-of-rack solution. Equipped with QSFP-DD ports, SN3510 enables seamless use of QSFP28/56 connections and future-proofs your data centre.

Get a Quote
Model Number
Mellanox Spectrum SN3510
Model Number

Connectors

Mellanox Spectrum SN3510

6 QSFP-DD 400GbE and 48 SFP56 50GbE

Model Number

Max. 400GbE Ports

Mellanox Spectrum SN3510

6

Model Number

Max. 200GbE Ports

Mellanox Spectrum SN3510

12

Model Number

Max. 100GbE Ports

Mellanox Spectrum SN3510

  • 4x 25G Lanes: 12
  • 4x 25G Lanes: 12
Model Number

Max. 50GbE Ports

Mellanox Spectrum SN3510

  • 1x 50G Lanes: 48+48
  • 2x 25G Lanes: 24
Model Number

Max. 40GbE Ports

Mellanox Spectrum SN3510

12

Model Number

Max. 25GbE Ports

Mellanox Spectrum SN3510

48+48

Model Number

Max. 10GbE Ports

Mellanox Spectrum SN3510

48+48

Model Number

Throughput

Mellanox Spectrum SN3510

9.6Tb/s

Model Number

Packet Per Second

Mellanox Spectrum SN3510

7.14Bpps

Model Number

Latency

Mellanox Spectrum SN3510

sub-400ns

Model Number

CPU

Mellanox Spectrum SN3510

Dual-core x86

Model Number

System Memory

Mellanox Spectrum SN3510

8GB

Model Number

SSD Memory

Mellanox Spectrum SN3510

16GB

Model Number

Packet Buffer

Mellanox Spectrum SN3510

42MB

Model Number

100/1000Mb/s Mgmt Ports

Mellanox Spectrum SN3510

1

Model Number

Serial Ports

Mellanox Spectrum SN3510

1 RJ45

Model Number

USB Ports

Mellanox Spectrum SN3510

1

Model Number

Hot-Swap Power Supplies

Mellanox Spectrum SN3510

2 (1+1 redundant)

Model Number

Hot-Swappable Fans

Mellanox Spectrum SN3510

6 (N+1 redundant)

Model Number

Reversible Airflow Option

Mellanox Spectrum SN3510

Yes

Model Number

Power Supplies

Mellanox Spectrum SN3510

  • Frequency: 50-60Hz
  • Input range: 100-264 AC
  • Input current: 4.5-2.9A
Model Number

Size (H x W x D)

Mellanox Spectrum SN3510

1.72’’ x 16.84’’ x 22’’ (44mm x 428mm x 559mm)

Model Number

Weight

Mellanox Spectrum SN3510

8.52kg (18.8lb)
