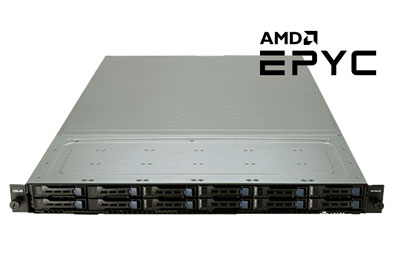

KRYPTON Duo R7221A-12SN2E «NEW»
NEWPowered by two AMD® EPYC® 7002 Processors, these compact 1U Server with 1 and 10 GBase-T LAN ports, and support for up to 12 hot swap 2.5″ drives.
Get a Quote
MODEL NUMBER
KRYPTON Duo R7221A-12SN2E
MODEL NUMBER
Form Factor
KRYPTON Duo R7221A-12SN2E
1U
MODEL NUMBER
CPU
KRYPTON Duo R7221A-12SN2E
Dual AMD® EPYC® 7002 Processors family
MODEL NUMBER
Max. Cores
KRYPTON Duo R7221A-12SN2E
128
MODEL NUMBER
Max. Memory
KRYPTON Duo R7221A-12SN2E
4TB DDR4 ECC Registered LRDIMM (32 DIMM slots)
MODEL NUMBER
Expansion
KRYPTON Duo R7221A-12SN2E
- 1 x PCI-E x16 (Gen3 x16 link), FH, HL (Optional for NVME4-OCuLink Card)
- 1 x PCI-E x16 (Gen3 x8 link), LP
- 1 x PCI-E x8 (Gen3 x8 link), LP (Default for NVME2-OCuLink Card)
MODEL NUMBER
Networking
KRYPTON Duo R7221A-12SN2E
- 2 x 1GBase-T LAN ports
- 2x 10GBase-T LAN ports
- 1 x Management LAN
- Optional High Speed Network card (EDR/IB)
MODEL NUMBER
Storage
KRYPTON Duo R7221A-12SN2E
- 12 x 2.5"" hot-swap drive bays - (4 x NVMe+ 4 x SATA/SAS/NVMe + 4 x SATA/SAS)
- 2 x M.2 connector (SATA 6Gb/s & PCIe® Gen3 x4 link)
MODEL NUMBER
Power Supply
KRYPTON Duo R7221A-12SN2E
1+1 Redundant 800W 80 PLUS Platinum Power Supply
MODEL NUMBER
Dimension
KRYPTON Duo R7221A-12SN2E
616mm x 444mm x 44mm
