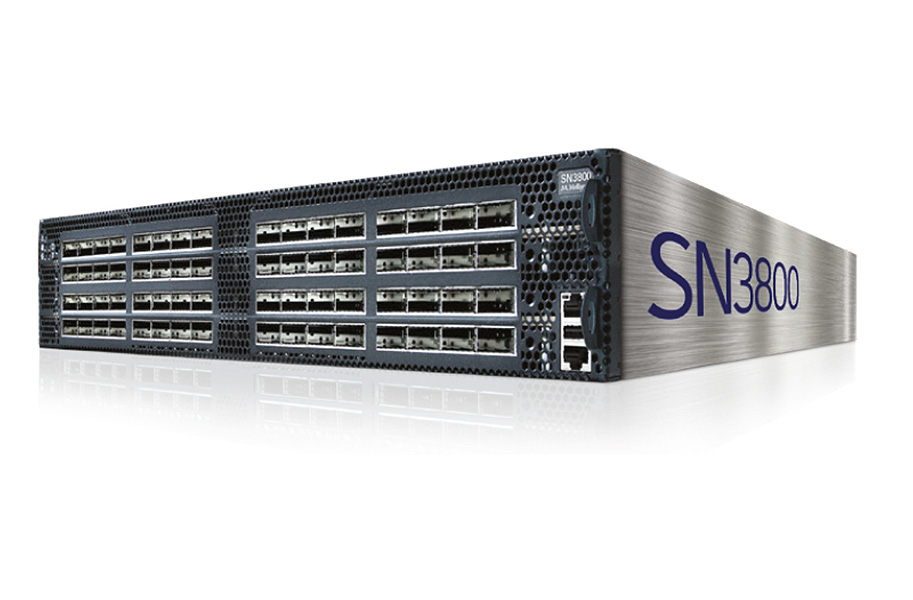

NVIDIA SPECTRUM SN3800 «NEW»

The NVIDIA Spectrum SN3800 is a 64-port 100GbE switch system that is ideal for spine/super-spine applications. With a landmark 8.33Bpps processing capacity and 12.8Tb/s throughput in a dense 2U form factor, the Spectrum SN3800 offers diverse connectivity in combinations of 1/25/40/50/100GbE. The Spectrum SN3800 is well-suited to answer the challenging needs of large virtualised data centres and cloud environments.

Get a Quote
Model Number
NVIDIA Spectrum SN3800
Model Number

Connectors

NVIDIA Spectrum SN3800

64 QSFP28 100GbE

Model Number

Max. 100GbE Ports

NVIDIA Spectrum SN3800

4x 25G Lanes: 64

Model Number

Max. 50GbE Ports

NVIDIA Spectrum SN3800

2x 25G Lanes: 128

Model Number

Max. 40GbE Ports

NVIDIA Spectrum SN3800

64

Model Number

Max. 25GbE Ports

NVIDIA Spectrum SN3800

128

Model Number

Max. 10GbE Ports

NVIDIA Spectrum SN3800

128

Model Number

Throughput

NVIDIA Spectrum SN3800

12.8Tb/s

Model Number

Packet Per Second

NVIDIA Spectrum SN3800

8.33Bpps

Model Number

Latency

NVIDIA Spectrum SN3800

sub-800ns

Model Number

CPU

NVIDIA Spectrum SN3800

Dual-core x86

Model Number

System Memory

NVIDIA Spectrum SN3800

8GB

Model Number

SSD Memory

NVIDIA Spectrum SN3800

16GB

Model Number

Packet Buffer

NVIDIA Spectrum SN3800

42MB

Model Number

100/1000Mb/s Mgmt Ports

NVIDIA Spectrum SN3800

1

Model Number

Serial Ports

NVIDIA Spectrum SN3800

1 RJ45

Model Number

USB Ports

NVIDIA Spectrum SN3800

1

Model Number

Hot-Swap Power Supplies

NVIDIA Spectrum SN3800

2 (1+1 redundant)

Model Number

Hot-Swappable Fans

NVIDIA Spectrum SN3800

3 (N+1 redundant)

Model Number

Reversible Airflow Option

NVIDIA Spectrum SN3800

Yes

Model Number

Power Supplies

NVIDIA Spectrum SN3800

  • Frequency: 50-60Hz
  • Input range: 100-264 AC
  • Input current: 4.5-2.9A
Model Number

Size (H x W x D)

NVIDIA Spectrum SN3800

3.46’’ x 16.84’’ x 22’’ (88mm x 428mm x 559mm)

Model Number

Weight

NVIDIA Spectrum SN3800

16.7kg (37lb)
