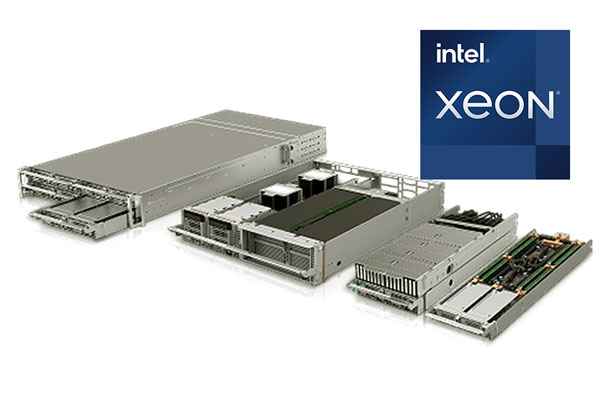

RADON™ Duo R4590 Quad2U Gen2

The RADON™ Duo R4590 Quad2U Gen2 servers are ideal for enterprises running high performance applications and other high transactional computing solutions. Growing organisations can leverage these powerful purpose built servers for their flexible data storage and security, high scalability, affordability pricing and more.

Get a Quote
XENON RADON R4590 G2
Model Number
RADON™ Duo R4590 Quad2U Gen2
Model Number

Chassis Profile

RADON™ Duo R4590 Quad2U Gen2

Rack - 2U form factor

Model Number

Chipset

RADON™ Duo R4590 Quad2U Gen2

Intel® C621A

Model Number

Intel® Optanepersistent memory 200 series

RADON™ Duo R4590 Quad2U Gen2

Yes

Model Number

Processor

RADON™ Duo R4590 Quad2U Gen2

Dual Intel® 3rd Gen Xeon® Scalable Processor family

Model Number

Max. Cores Per Node

RADON™ Duo R4590 Quad2U Gen2

80

Model Number

Max. Memory Per Node

RADON™ Duo R4590 Quad2U Gen2

2TB DDR4 ECC Registered DIMM or 4TB Optane persistent memory 200 series

Model Number

Storage Per Node

RADON™ Duo R4590 Quad2U Gen2

  • Compute Node: 2x M.2 SATA / NVMe
  • Management Node: 2x M.2 SATA / NVMe + 2x 2.5" U.2 NVMe hot-swap
  • Management Node: 2x M.2 SATA / NVMe + 16x E1.L NVMe hot-swap
  • GPU Node: 2x M.2 SATA / NVMe + 2x 2.5" U.2 NVMe hot-swap
Model Number

Expansion

RADON™ Duo R4590 Quad2U Gen2

  • Compute Node: 2x PCI-E 4.0 x16
  • Management Node: 3x PCI-E 4.0 x16 + 1x PCI-E 4.0 x8
  • Management Node: 2x PCI-E 4.0 x16
  • GPU Node: 3x PCI-E 4.0 x16 + 1x PCI-E 4.0 x8 + 4x PCI-E 4.0 Double Width GPUs
Model Number

Networking

RADON™ Duo R4590 Quad2U Gen2

Dual Intel® 10GbE RJ45 LAN

Model Number

IPMI Remote Managment

RADON™ Duo R4590 Quad2U Gen2

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Model Number

Power Supply

RADON™ Duo R4590 Quad2U Gen2

Up to 3x 2100W RPSU

Model Number

Dimensions

RADON™ Duo R4590 Quad2U Gen2

  • Height: 3.42" (86.8mm)
  • Width: 17.4" (442mm)
  • Depth: 34.1" (865mm)
Model Number

Server Software Support

RADON™ Duo R4590 Quad2U Gen2

  • Windows Server 2019 Standard / Datacenter RTM
  • Red Hat Enterprise Linux Server 7, 8
  • Suse Enterprise Linux Server 15
  • Ubuntu 20
  • CentOS 7, 8
  • VMware 7.0 certified
Model Number

Software Solution Stack

RADON™ Duo R4590 Quad2U Gen2

  • XENON Cluster Stack Management Software
  • Job Scheduling Altair® PBS Professional™
  • Adaptive Computing TM Moab® HPC Suite Enterprise Edition
  • SLURM
Model Number

Support

RADON™ Duo R4590 Quad2U Gen2

XENON offers Global Sales and Support
