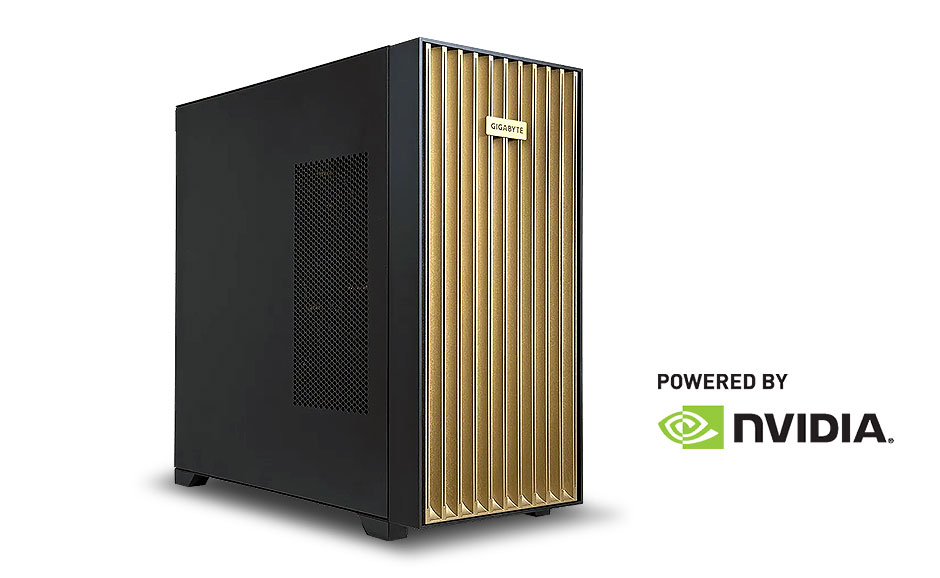

Gigabyte W775-V10-L01 «NEW»
NEWThe Ultimate Deskside AI Supercomputer
The GIGABYTE W775-V10-L01 is a powerful deskside AI workstation built on NVIDIA’s Grace Blackwell architecture, combining CPU and GPU into a unified platform for exceptional performance. With massive coherent memory, ultra-high bandwidth, and advanced liquid cooling, it enables local training and deployment of large AI models while reducing reliance on cloud infrastructure. Designed for AI engineers, data scientists, and enterprise users, it delivers data center–class compute in a compact, on-premise solution.
Key Features:
- NVIDIA GB300 Grace Blackwell Ultra Superchip (CPU + GPU unified architecture)
- Up to ~748GB unified coherent memory for large AI models
- 72-core NVIDIA Grace CPU with Arm Neoverse V2 architecture
- High-bandwidth HBM3e GPU memory (7+ TB/s bandwidth)
- NVLink-C2C interconnect eliminating CPU–GPU bottlenecks
- Dual 400Gb/s networking via NVIDIA ConnectX-8 SuperNIC
- PCIe Gen5/Gen6 expansion with high-speed NVMe storage support
- Closed-loop liquid cooling for sustained AI workloads
Architecture
NVIDIA Grace Blackwell
GPU
1× NVIDIA Blackwell Ultra
CPU
1× NVIDIA Grace – 72-Core Neoverse V2
GPU Memory
252 GB HBM3e | 7.1 TB/s
CPU Memory
496 GB LPDDR5X | 396 GB/s
NVLink-C2C
900 GB/s
Supported OS
DGX OS for Desktop
MIG Support
Up to 7 instances
FP4 Tensor Core
153 PFLOPS
FP8 / FP6 Tensor Core
10 PFLOPS
INT8 Tensor Core
330 TOPS
FP16 / BF16 Tensor Core
5 PFLOPS
TF32 Tensor Core
2.5 PFLOPS
FP32
80 TFLOPS
FP64 / FP64 Tensor Core
1.3 TFLOPS
Supported RTX PRO GPUs
NVIDIA RTX PRO 6000 Workstation Edition, 6000 Max-Q, 4000 SFF, 2000 Blackwell Generation
Total System Power
Single 1600W ATX 80+ Platinum 15A Power Supply
Decoders
7× NVDEC
JPEG Acceleration
7× nvJPEG
Storage
- 2 x M.2 (2240/2260/2280), PCIe Gen5 x4, from CPU
- 2 x M.2 (2240/2260/2280), PCIe Gen6 x4, from ConnectX-8"
Networking
NVIDIA ConnectX-8 SuperNIC | Up to 800 GB/s
Ethernet
2× QSFP112 (400 Gb/s), 1× RJ45 10GbE, 1× RJ45 1GbE (BMC for System Management)
PCIe Slots
- 1x PCIe 5.0 x16 FHFL double wide slot
- 2x PCIe 5.0 x16 FHFL single wide slots with x8 signals
- 1x PCIe 2.0 x1 2230 M.2 for WiFi/BT
Front IO
- 1 x USB 3.2 Gen2 port (Type-C)
- 2 x USB 3.2 Gen1 ports (Type-A)
- 2 x Audio jacks (Audio out/Mic)
- 1 x Power button with LED
- 1 x Reset button with storage activity LED
Rear IO
- 4 x USB 3.2 Gen2 ports (Type-A)
- 1 x Micro USB port (USB-to-UART)
- 1 x Mini-DP 2 x QSFP ports
- 1 x RJ45 port
- 1 x MLAN port
- 2 x Wi-Fi antenna ports
- 3 x Audio jacks (Audio in/Audio out/Mic)
Dimensions (WxHxD, mm)
218 x 519.5 x 726.3
Warranty
3 Years Manufacture Onsite Warranty (50km radius CBD - Australia)
