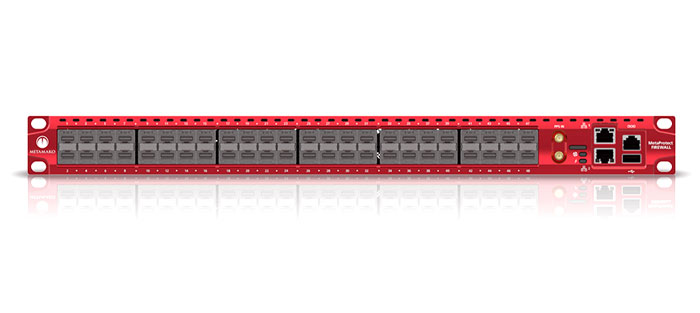

MetaProtect Firewall «NEW»

MetaProtect™ Firewall is a powerful, 48 x 10GbE port network appliance that performs sophisticated packet filtering in parallel between port-pairs. Filtering is implemented via per-port Access Control Lists (ACL). MetaProtect Firewall provides complete flexibility in configuration, allowing authenticated administrators to create mappings between physical port-pairs and apply ACLs to either or both endpoints. MetaProtect is architected for ultra-low-latency with packets passing an ACL being forwarded in 112 nanoseconds or less; significantly faster than most traditional firewalls.

Features and Benefits:

  • High port density: 48 x 10GbE SFP+ ports in 1 RU with 32 x 10GbE Firewall filters and accelerated traffic processing capacity
  • Parallel filtering: Cut-through filtering via 32 ACLs with up to 510 rules per ACL. Per-port filtering possible by assigning an ACL to a port.
  • Flexible ACLs: ACLs support permit/deny rules based upon source/destination IP address/Port number. IP addresses may be wild-carded using CIDR style notation.
  • Ultra-low latency filtering: Average filter latency of 112 ns for the minimum latency configuration (1 rule) to 187 ns for the maximum configuration (510 rules) – some of the fastest in the industry
  • Extensive packet statistics: Advanced monitoring and capture of comprehensive packet statistics across all ports. Support for detailed switch statistics via SNMP, CLI or InfluxDB.
  • Comprehensive logging:
    • Logged statistics of permitted and denied packets
    • Individually logged events when packet fails an ACL, including packet information, date, time, ACL ID and reason
    • Logged administrative ACL rule changes
    • Local and remote logging via syslog
Get a Quote
Model Name
MetaProtect Firewall
Model Name

Layer 1

MetaProtect Firewall

  • 5 ns latency with virtually no jitter when configured as pass-through
  • Non-blocking matrix switching fabric connecting ports and filters
  • 1/10GbE SFP/SFP+ ports
  • Tap any port to any other for off-device capture/monitoring
  • Configurable port-to-port fanout with regeneration
  • High-performance signal recovery, regeneration and conditioning (EDC on input, CDR on input and output)
Model Name

Media Compatibility

MetaProtect Firewall

  • Accepts any MSA compliant SFP/SFP+ module
  • Supports the majority of third-party SFP/SFP+ modules
Model Name

Management Platform

MetaProtect Firewall

  • Quad-core x86-64 CPU
  • 8 GB RAM, on-board SSD
  • Industry standard command line interface (serial/SSH/telnet)
  • Web-based GUI
  • Linux-based (shells, scripting, Python, RPMs etc.)
  • Binary compatibility with other x86-64 based Linux systems
  • Firmware restore and update via USB, serial and network
  • Switch subsystem API (JSON RPC API)
  • Integrates In uxData time series TICK stack providing sophisticated telemetry capability
Model Name

Management Protocols

MetaProtect Firewall

  • HTTP/S, SSH, telnet
  • Serial console
  • PTP, NTP
  • SNMP v1, v2, v3
  • DHCP
  • Local and remote syslog
  • RADIUS and TACAS+ authentication
Model Name

Operating Environment

MetaProtect Firewall

  • Temperature: 0°C to 40°C
  • Humidity: 10% to 85%, non-condensing
  • Maximum altitude: 3000m (9800ft)
Model Name

Physical And Electrical

MetaProtect Firewall

  • Dimensions (h x w x d): 4.3 x 44.8 x 37.9cm (1.7 x 17.6 x 14.9in)
  • Weight: ~8kg (17.6lbs), depending on configuration
  • Maximum power: 290W
  • AC voltage range: 100-240V, AC frequency: 50/60Hz
  • DC voltage range: 40-72V
