NVIDIA Spectrum SN3000 Switches


The NVIDIA Spectrum SN3000 Ethernet switches are ideal for leaf and spine data center network solutions, allowing maximum flexibility, with port speeds spanning from 1GbE to 400GbE per port and port density that enables full rack connectivity to any server at any speed. Powered by the 50G PAM-4 based NVIDIA Spectrum-2 ASIC, the SN3000 series carries a whopping bidirectional switching capacity of up to 12.8Tb/s with a landmark 8.33Bpps packet processing rate. Purpose built for the modern data centre, the SN3000 switches combine high performance packet processing, rich data centre features, cloud network scale and visibility with flexible form factors.

model no.
description
key features

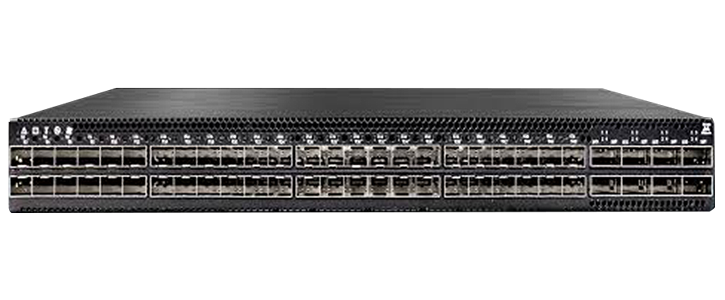

model no. NVIDIA Spectrum SN3510
description

Equipped with 48 ports of 1/25/50GbE and 6 ports of up to 400GbE, the NVIDIA Spectrum SN3510 is an ideal leaf platform.

key features
  • 400GbE ports can optionally be split into up to 48 ports running 50GbE
  • Up to 9.6Tb/s with 7.14Bpps processing capacity
  • Equipped with QSFP-DD ports
  • SN3510 enables seamless use of QSFP28/56 connections

Learn more

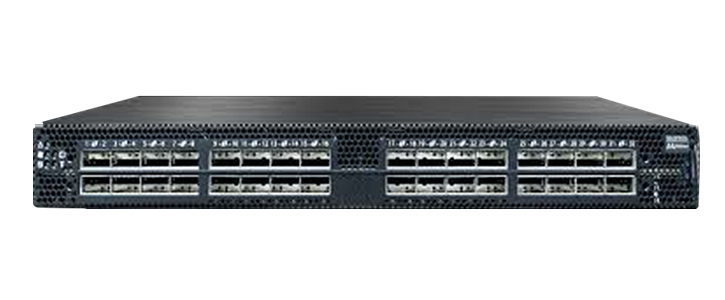

model no. NVIDIA Spectrum SN3700
description

NVIDIA Spectrum SN3700 200GbE spine/super-spine offers 32 ports of 200GbE in a compact 1U form factor.

key features
  • Carries a throughput of 12.8Tb/s
  • With a landmark 8.33Bpps processing capacity
  • With port speeds spanning from 10GbE to 200GbE per port

Learn more

model no. NVIDIA Spectrum SN3700C
description

NVIDIA Spectrum SN3700C is a 1U 32-port 100GbE spine that can also be used as a high density 10/25GbE leaf when used with splitter cables

key features
  • With ports spanning from 1GbE to 100GbE
  • SN3700C ports are fully splittable to up to 128 x 10/25GbE ports

Learn more

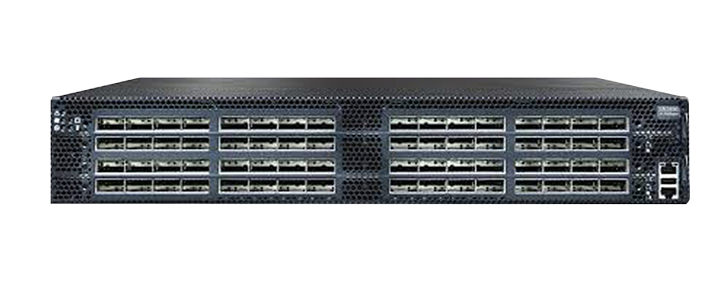

model no. NVIDIA Spectrum SN3800
description

NVIDIA Spectrum SN3800 is well-suited to answer the challenging needs of large virtualised data centres and cloud environments.

key features
  • A 64-port 100GbE switch system that is ideal for spine/super-spine
    applications
  • With a landmark 8.33Bpps processing capacity
  • 12.8Tb/s throughput in a dense 2U form factor
  • Offers diverse connectivity in combinations of 1/25/40/50/100GbE

Learn more
